Roof system

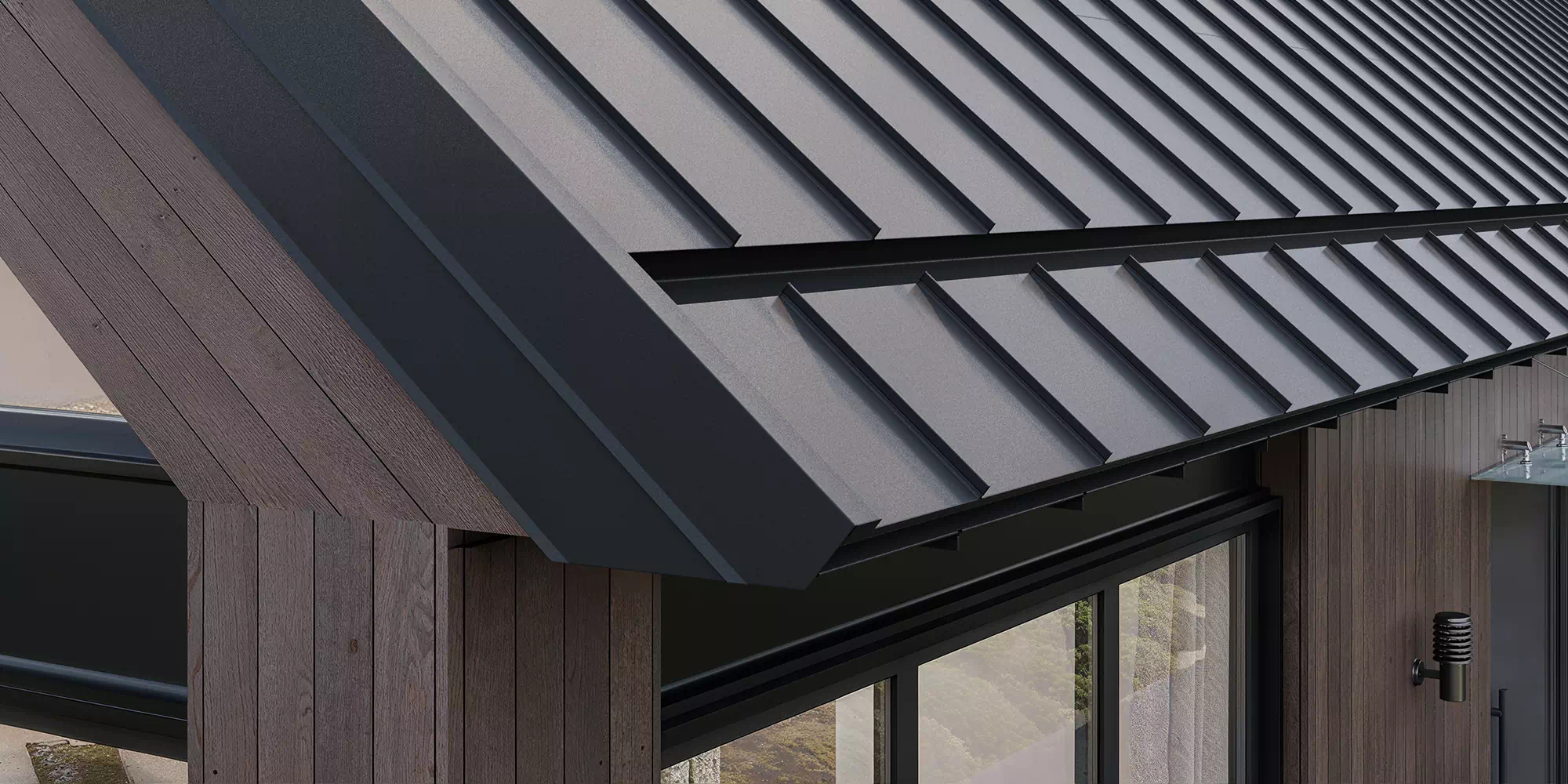

By choosing ROOFGUTTER Eaves, you obtain a minimalist shape of the building. And by getting rid of visible pipes and gutters that can interfere with the facade aesthetics, you receive a 2-in-1 solution that fits perfectly with the requirements of contemporary design and functionality.
ROOFGUTTER Eaves is an excellent alternative to traditional roofing with visible gutters – thanks to a stunning visual effect and a price that is comparable to traditional solutions.
An innovative integrated roof system that combines a seam panel with a gutter system hidden in its structure and the building’s facade. The perfect match of the roof and gutter allows for a uniform and modern shape.
The ROOFGUTTER system used in houses without eaves ensures a uniform transition of the roof into the façade, emphasizing the minimalism of the structure’s finishing. The system can also be used in innovative projects with eaves, which is the only hidden gutter solution on the market for this type of buildings.
Innovativeness
The system can be used not only in projects without eaves, but also those with eaves, which is a unique solution of the hidden gutter for this type of buildings.
Aesthetics
An innovative system solution that allows you to hide the gutter in the roof slope and in the façade insulation layer. The gutter is completely invisible to the eye, which guarantees a uniform and minimalist finish of the building.
System based
A unique solution in the form of a 2-in-1 system integrating the roof and the gutter facilitates the process of selecting individual components by the investor.
Safety and peace of mind
15-year system guarantee as well as individual technical guaranties: 50 years for the seam panel, 40 years for aluminium substructure, 35 years for the steel gutter level, 15 years for PVC downpipes.
Care for the environment
Scandinavian GreenCoat® Pural BT steel as the input material for the seam panel contains a biotechnology-based coating made of Swedish rapeseed oil instead of petroleum-derived ingredients.
Integrated service
Full service including technical advice for architects at the design stage, training support for roofing warehouses and safe installation by proven contractors.
| Coat type | Warranty | Anthracite RAL 7016 | Black RAL 9005 |
|---|---|---|---|
| GREENCOAT® PURAL BT MAT | 50 years |  716M |  905M |
| ROUGH MATT POLYESTER | 40 years | 716R | 905R |
| GRANITE® ULTRAMAT | 25 years | 716U |
| Coat type | Warranty | Anthracite RAL 7016 | Black RAL 9005 |
|---|---|---|---|
| GREENCOAT® PURAL BT | 35 years | 716 | 905 |
| PVC (downpipe) | 10 years | 716 | 905 |
| Effective width of the panel | 501 mm |
| Total width of the panel | 531 mm |
| Length of the panel | 1 and 2 m |
| Total height of the panel | 1 and 2 m |
| Sheet thickness | 0,5 mm |
| Zinc coating | 275 g/m2 |
| Minimum roof slope | 28° |
| Pipe size | 80x70 mm, length: 4000 mm |
| Gutter cross-section | 190 mm, length: 4000 mm |
 | 100 m2 |
 | 180 m2 |
1. Steel roof gutter
2. Gutter bracket
3. Eaveless outlet
4. Outlet basket
5. Universal steel end cap
6. Highly vapour-permeable membrane
7. GRIN roof panel
8. Wind brace
9. Ridge tile
10. 25 x 50 mm aluminium profile
11. Flexible elbow
12. 50 x 100 mm aluminium profile
13. PVC membrane
14. 80 x 70 mm clamp
15. 80 x 70 mm PVC pipe
16. Thermal insulation casing for the drain pipe
17. 80×70 mm/110 mm reduction
18. fi 110 mm clamp
19. fi 110 mm elbow
20. fi 110 mm drain pipe
21. Drain box extension
22. Drain box
Galeco GRIN MOD is a standing seam roof panel in a modular version that combines the advantages of the classic Galeco GRIN covering with the modern functionality of modular solutions.
Thanks to the modular design, these panels are available off-the-shelf, which significantly simplifies and speeds up the assembly process. They are also characterised by exceptional durability, which makes them an ideal choice for a variety of architectural projects, giving them a unique visual effect. Galeco GRIN MOD was designed by experts esteemed in the roofing industry and is manufactured in our factory in Balice.
Modular standing seam panel 200 cm
Modular standing seam panel 100 cm
Modular starting panel for standing seam panel 200 cm
Modular starting panel for standing seam panel 100 cm
Starting eaves drip
Ventilation starting eaves drip
Wind brace extension
Valley gutter
High wind brace for standing seam panel

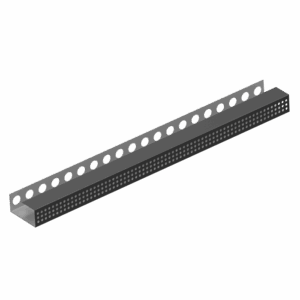

Ventilation profile for ridge tile
Starting ventilating profile – facade
Roof membrane
TORX SCREW
Screws for soffit
Small ridge tile 225 mm/200 cm
Big ridge tile 325mm/200 cm
