QSTALYO

Prestige and aesthetics closed in geometry – squared

The elegant and modern shape makes the new square pvc gutter ideally suiting the latest trends in construction and the aesthetic needs of investors.

Square section of the gutter and downpipe

A shape perfectly adapted to the modern building designs.

Increased gloss of the gutters

The high sheen of the system achieved in the process of co-extrusion.

Designer support with CAD/BIM

Specially prepared CAD drawings will allow architects and designers to accommodate the system into the building design.

Specially selected materials

By using specially selected materials, the highest possible UV resistance is achieved.

100% leakproof

Achieved by using a specially designed, innovative gutter sealing element.

Heating cable system

A professional system for protecting gutters and down pipes against frost and snow, protecting the entire gutter system from winter damages

RAL-kleur	135/70 x 80
GRAPHITE RAL 7021
BLACK RAL 9005

Positie van de regenpijp	135/70 x 80
	90 m²
	180 m²

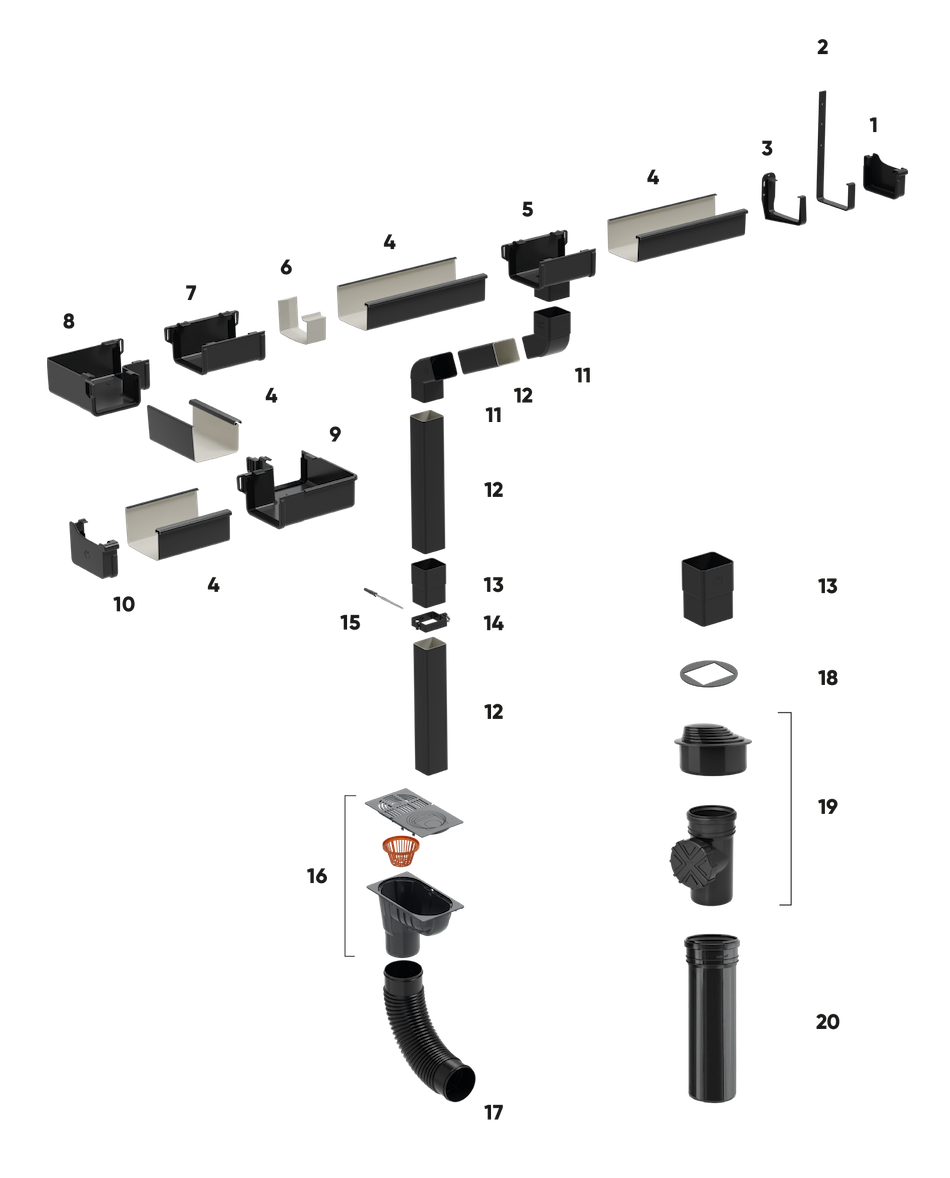

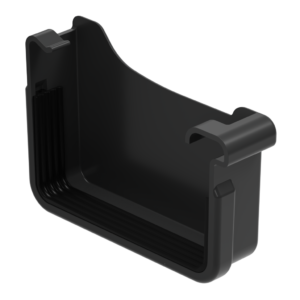

1. Right endcap

2. Metal rafter bracket

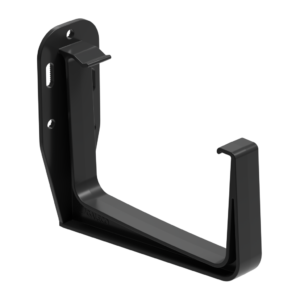

3. Support bracket PVC

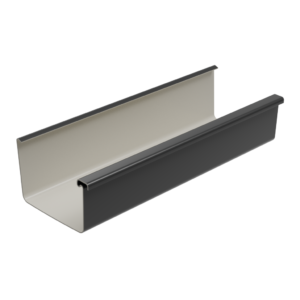

4. Gutter

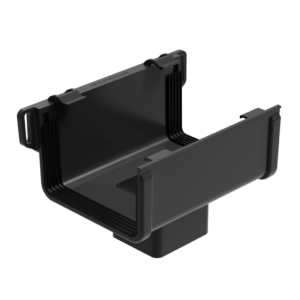

5. Outlet

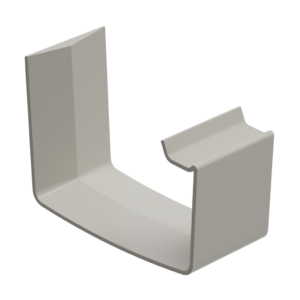

6. Sealing insert

7. Gutter joiner

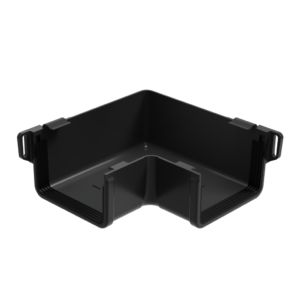

8. Internal corner 90°

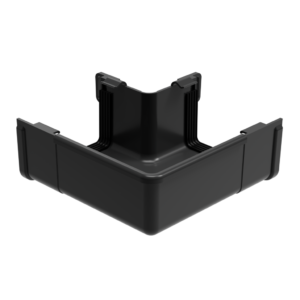

9. External corner 90°

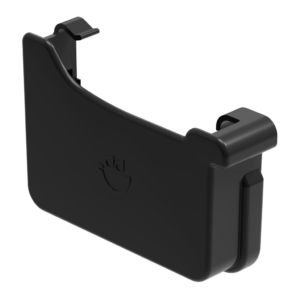

10. Left endcap

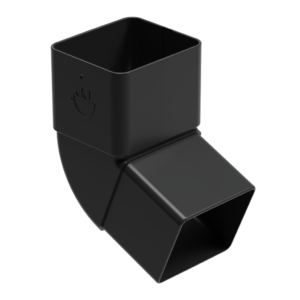

11. Elbow 67°

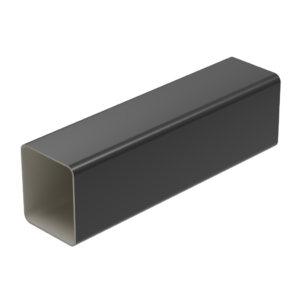

12. Pipe

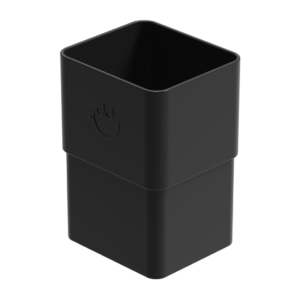

13. Socket

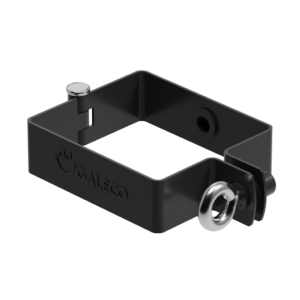

14. Dowel pipe clamp

15. Double-thread pegged screw with long jacket

16. Gully universal [PP] (with a basket and flaps)

17. Elastic elbow

18. Flap for the pipe 70×80

19. Vertical revision with reduction (set) [PP] 80-110mm/110mm

20. Revision pipe 0,5 m, fi 110

A new square gutter

Galeco PVC² is the next step in the future and an innovative approach to the gutter system through the use of selected pvc raw material to create a square gutter profile. The unique, square shape of the gutter and downpipe is the key to maintaining harmony and aesthetics in the most modern architectural designs.
