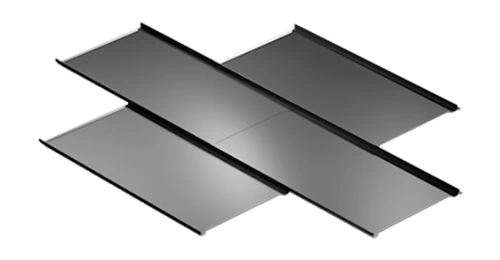

Galeco GRIN MOD is a standing seam roof panel in a modular version that combines the advantages of the classic Galeco GRIN covering with the modern functionality of modular solutions.
Thanks to the modular design, these panels are available off-the-shelf, which significantly simplifies and speeds up the assembly process. They are also characterised by exceptional durability, which makes them an ideal choice for a variety of architectural projects, giving them a unique visual effect. Galeco GRIN MOD was designed by experts esteemed in the roofing industry and is manufactured in our factory in Balice.
Safety
The overlapping installation of shingles in transverse joints, combined with specially designed cutouts at the bottom of the panel, ensures a tight fit between panels, effectively preventing leaks.
Low Weight
Roofing made from modular standing seam panels is significantly lighter than traditional heavy roofing materials. The low weight of individual panels also makes transport and installation easier.
Availability Off the Shelf
Eliminates the need for custom-made elements for a specific roof project. This is especially convenient when replacing damaged panels.
Convenient Transport
Modular panels are smaller in size and lightweight, making them easy to transport and store. Their modularity allows for better adaptation to various spaces, reducing logistical costs.
Durability and No Waviness Effect
Galeco GRIN MOD is installed with a “click” system, eliminating the need for additional fastening tools. The panels are flexible and can be used on roofs of various shapes, slopes, and sizes.
Ecology and Environment
Galeco GRIN MOD panels are made from environmentally friendly steel. Additionally, their lightweight construction requires fewer resources for production and installation, reducing the carbon footprint.
The Galeco GRIN MOD modular standing seam roof panel is one of the most advanced solutions on the lightweight roofing market. It combines the advantages of the classic Galeco GRIN standing seam panel with the functionality of modular systems.
The GRIN MOD roofing solution responds to the growing demands of modern construction. It blends the elegance of a traditional standing seam with the simplicity and speed of modular installation. The panels are installed in an alternating pattern, creating a checkerboard effect reminiscent of handcrafted standing seams. Specially designed cut-outs at the bottom of the panel and an overlapping system ensure complete roofing tightness
| Type of coating | Warranty | Anthracite RAL 7016 | Black RAL 9005 |
|---|---|---|---|
| GREENCOAT® PURAL BT MAT | 50 years |  7016 |  9005 |
| ROUGH MATT POLYESTER | 40 years | 7016 | 9005 |
| Effective panel width | 501 mm |
| Total panel width | 531 mm |
| Effective lengths of starter modular panels | 1 and 2 m |
| Effective lengths of standard modular panels | 1 and 2 m |
| Sheet thickness | 0.5 mm |
| Standard zinc coating | 275 g/m2 |
| Minimum roof pitch | 18° |
The modular standing seam panel Galeco GRIN MOD offers a range of practical benefits. Most importantly, it is significantly lighter than traditional roofing materials, resulting in less load on the building structure. The standardized dimensions of the modules not only make transport and storage easier but also eliminate the need for custom-made elements for specific roof designs. This solution is especially valuable when it comes to replacing individual panels due to possible damage during installation.
The system is designed for maximum application flexibility – the panels can be used and installed on roofs of various shapes and pitches. The click-lock installation method eliminates the need for additional tools or fasteners, significantly speeding up and simplifying the installation process.
Modular standing seam panel 200 cm
Modular standing seam panel 100 cm
Modular starting panel for standing seam panel 200 cm
Modular starting panel for standing seam panel 100 cm
Starting eaves drip
Ventilation starting eaves drip
Wind brace extension
Valley gutter
High wind brace for standing seam panel
Ventilation profile for ridge tile
Starting ventilating profile – facade
Roof membrane
TORX SCREW
Screws for soffit
Small ridge tile 225 mm/200 cm
Big ridge tile 325mm/200 cm
