Roof system
The essence of innovations – modularity of systems. We are the only ones who offer ready-made kits that include a roof funnel, a pipe and an adapter for drainage through the parapet.

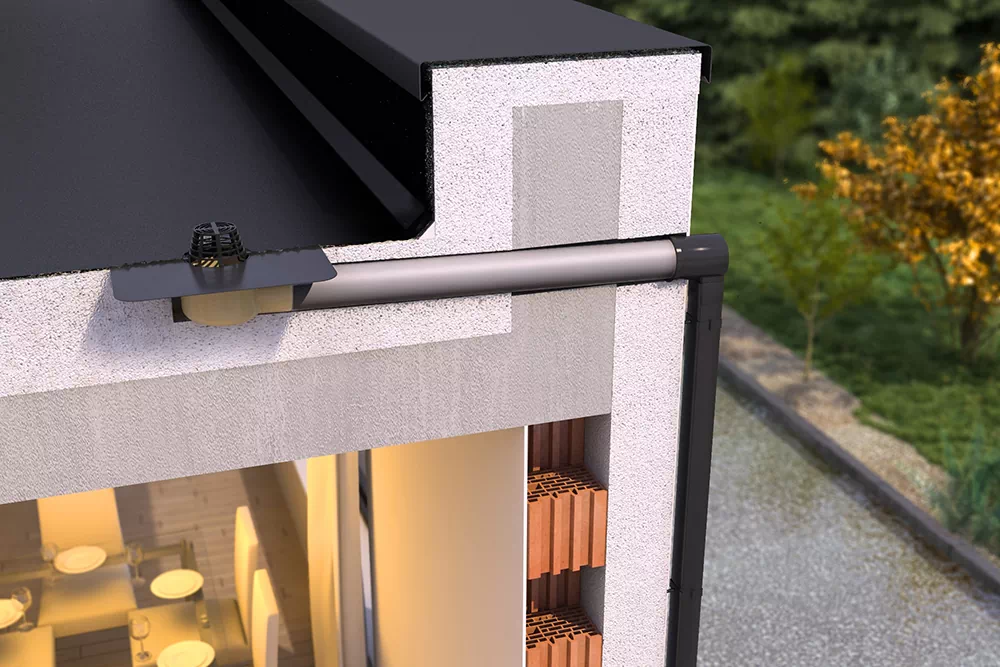

Thanks to the Galeco system, it is possible to easily connect a flat-roof drain with square Galeco drainage pipes, without breaking the integrity of the building's overall architectural appearance.
Hopper heads are auxiliary components for emergency drainage systems designed for flat roofs. The first type of basket is equipped with an outlet designed to connect a round pipe of diameter 100 mm in the Galeco STAL system. The second type can be connected with a square 80×80 mm drain pipe in the Galeco STAL².

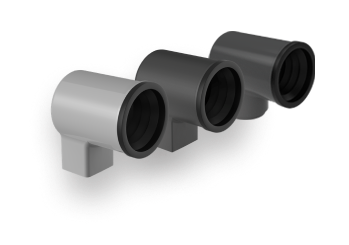

The adapter allows you to connect the gullies with square and round drain pipes in a simple and convenient way. It ensures effective drainage of rainwater from flat roofs and terraces, while maintaining the aesthetics of the building. The adapters are available in configurations for a square steel pipe 80×80 mm, a round steel pipe ø 90 and 100 mm, a round PVC pipe ø 100 mm, mounted outside the facade, and for a rectangular PVC pipe 70×80 mm, which can be mounted both outside the facade and in the layer building insulation.
The adapter allows you to connect gullies with square and round drain pipes in a simple and convenient way. It ensures effective drainage of rainwater from flat roofs and terraces, while maintaining the aesthetics of the building. The adapters are available in configurations for a square steel pipe 80×80 mm, a round steel pipe ø 90 and 100 mm, a round PVC pipe ø 100 mm, mounted outside the facade, and for a rectangular PVC pipe 70×80 mm, which can be mounted both outside the facade and in the layer building insulation.

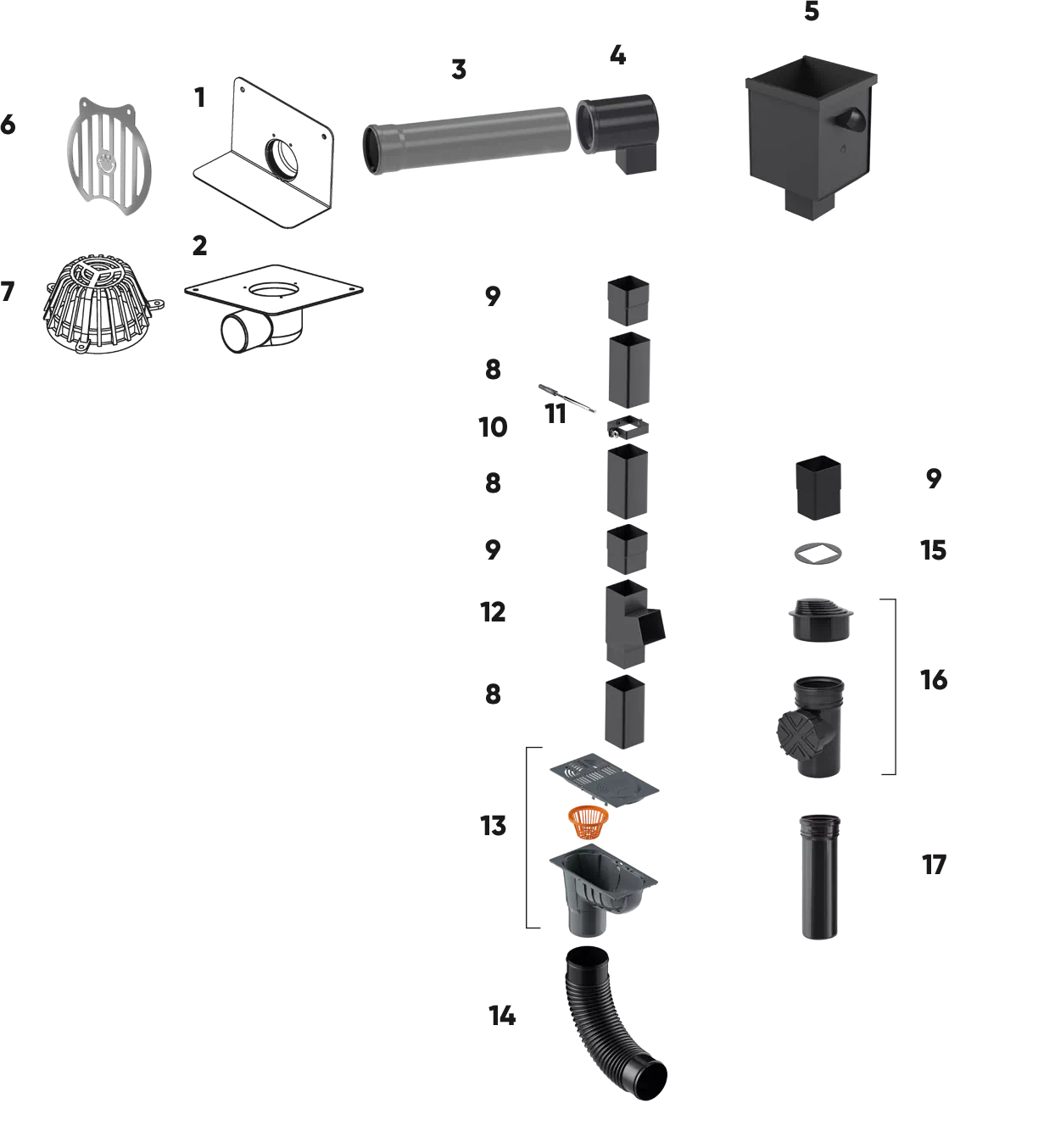

Scheme of connecting gullies with Galeco STAL2 80×80 mm

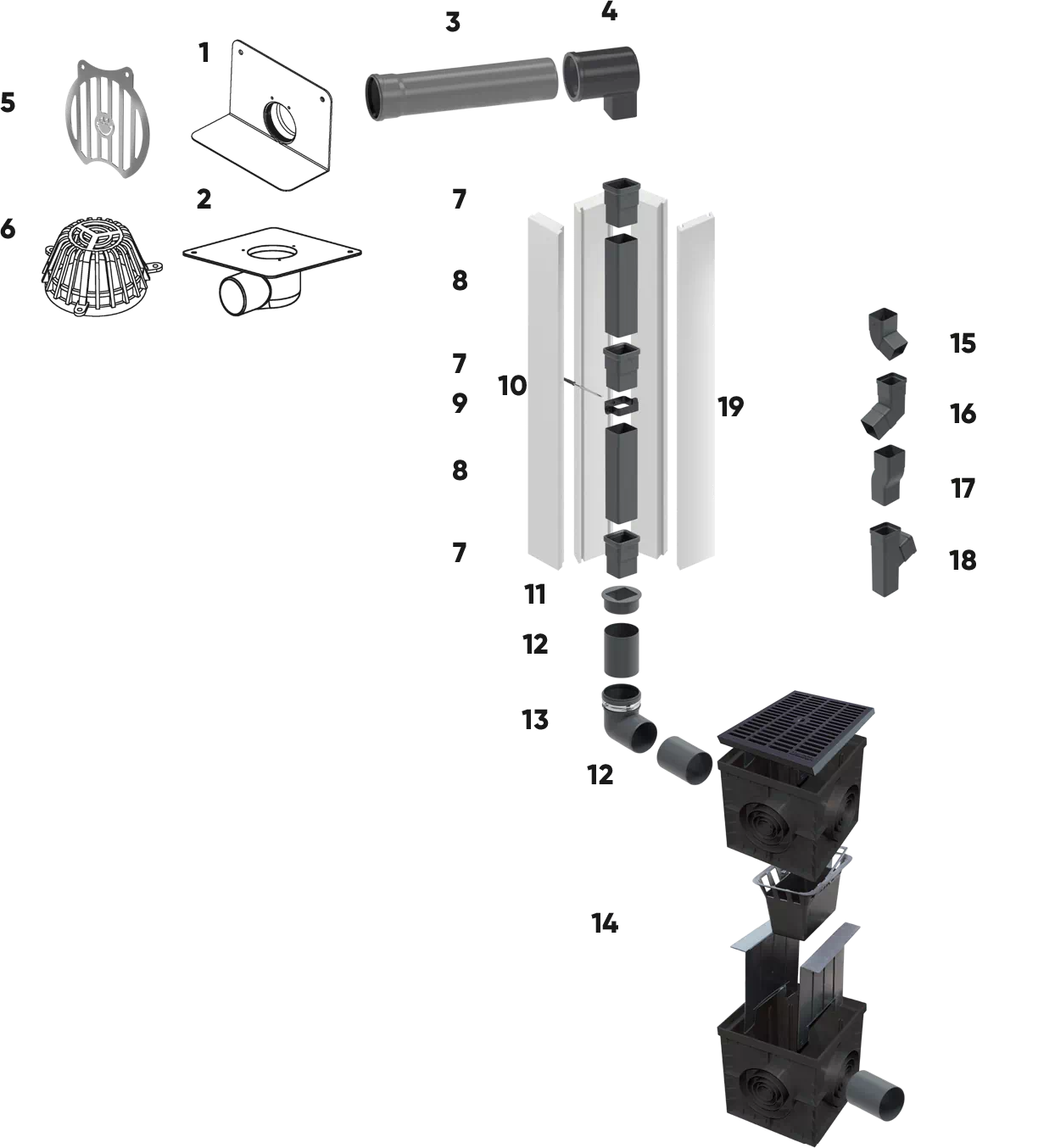

Scheme of connecting gullies with Galeco HIDDEN 70×80 mm

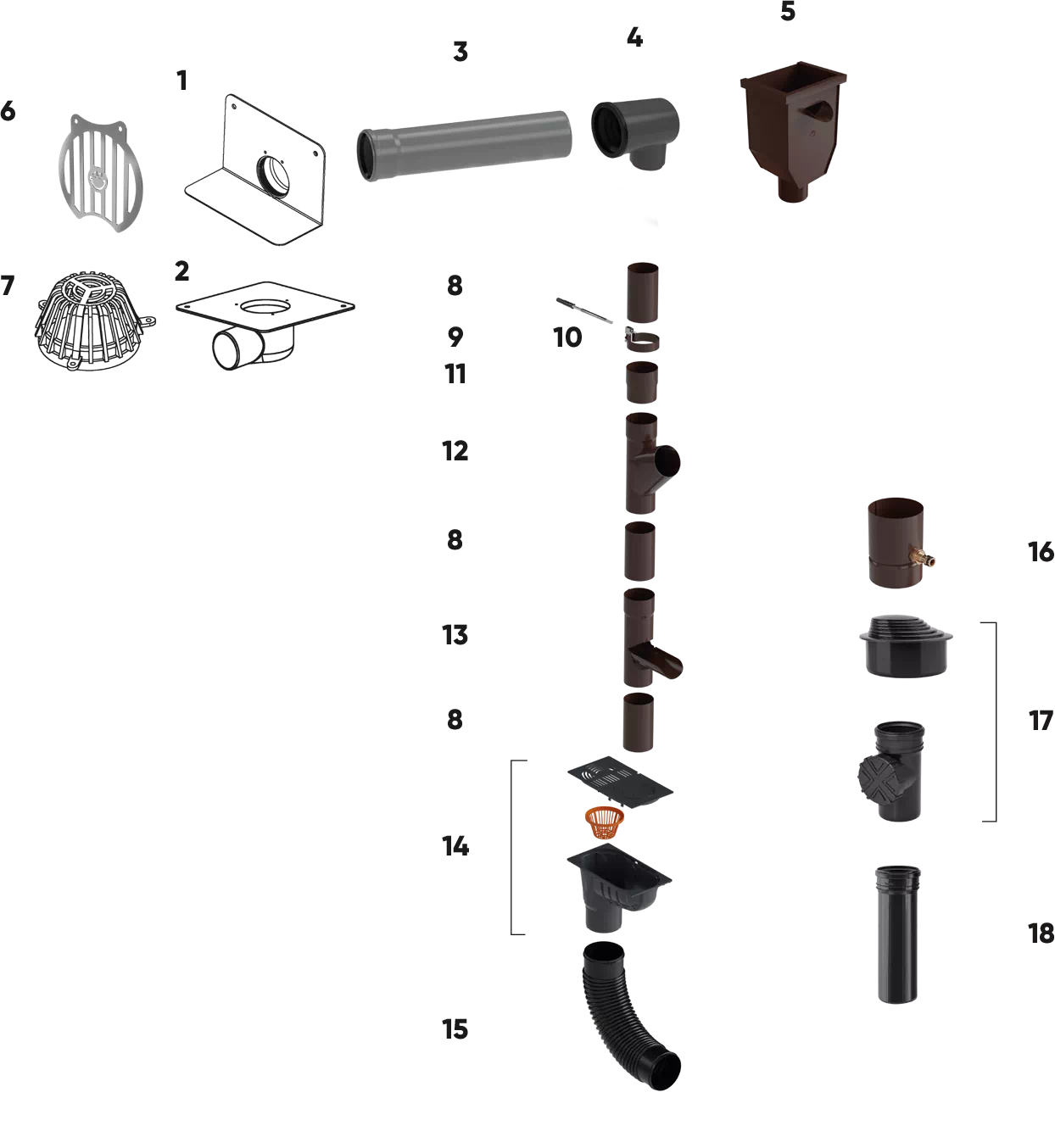

Scheme of connecting gullies with Galeco STAL, PVC, Luxocynk – example Galeco STAL
