Roof system
BROSA in Icelandic means SMILE, which, in line with the slogan “Smile for rain”, creates the happy brand of Galeco. The Galeco BROSA roof system is distinguished by its aesthetic design and symmetry of embossing.
Thanks to these features, BROSA roofing fits perfectly into both modern and traditional building designs. The product is available in two surface finishes – flat and microwave variant – which ensures a universal covering style.
Modernity and aesthetics
The timeless shape of metal roofing tiles was designed for versatile use in both modern and traditional buildings.
Ecology and the highest quality
The use of GreenCoat® Crown BT steel dedicated to modular roofs guarantees high durability and color repeatability, as well as corrosion resistance.
Reinforced construction
The central embossment in the lower wave strengthens the panel profile and eliminates the phenomenon of sheet metal waving.
Easy transport and assembly
The use of a modular form allows for easy transport. The small dimensions of the panels ensure convenient installation and make it easier to carry them to the roof without the risk of deformation.
Symmetry and economics
Symmetrical panels allow installation in any direction. This minimizes waste and improves the economics of roofing.
Modularity and accessibility
The modular form of metal roofing tiles allows for optimal use of warehouse space, and also guarantees immediate availability of the product without having to wait for production to order.
The Galeco BROSA roofing system is distinguished by its aesthetic design and symmetry of embossment. Thanks to these features, BROSA tile effect roof sheets fit perfectly with both modern and conventional building designs. The product is available in two surface finishes, flat and with a micro wave, which makes it a universal roofing in terms of style.
The Galeco BROSA roofing system is available in three coatings: GREENCOAT® CROWN BT MAT, ROUGH MATT POLYESTER, GRANITE® ULTRAMAT
| Type of coating | Warranty | Anthracite RAL 7016 | Black RAL 9005 | Brown RAL 8017 |
|---|---|---|---|---|
| ROUGH MATT POLYESTER | 40 years |  7016 |  9005 |  8017 |
| GRANITE® ULTRAMAT | 25 years | 7016 | ||
| GREENCOAT® CROWN BT MAT | 40 years | 7016 | 9005 |
| Total height | 43 mm |
| Embossing height | 30 mm |
| Module length | 350 mm |
| Total width | 1196 mm |
| Effective width | 1160 mm |
| Total length | 725 mm |
| Effective sheet area | 0.812 m2 |
| Weight per panel | 3.9 kg |
| Sheet thickness | 0.50 mm |
| Zinc coating | 275 g/m2 |
| Sheets per pallet | 200 pcs |
| Minimum roof pitch | 9° |
Galeco BROSA modular metal roofing tiles create a durable and timeless roof covering. A characteristic feature of the product is the central embossment, which increases the stiffness of the panel, eliminating the phenomenon of surface waving. The symmetrical shape of the modules allows the roof covering to be installed in any direction of the roof slope, ensuring optimal use of each sheet.
The symmetrical form creates a modern and easy-to-install roof covering, resistant to the passage of time and the passing of trends. BROSA was created with the environment in mind by using Scandinavian GreenCoat® Crown BT steel. It contains a biotechnology-based semi-matte coating, the production of which uses Swedish rapeseed oil instead of petroleum-based ingredients. Organically coated GreenCoat® Crown BT steel, which is dedicated to modular roofs, guarantees high durability and color repeatability.
Modular flat roofing tile
Modular metal roofing tile with a little wave
Small ridge tile 225 mm/200 cm
Big ridge tile 325mm/200 cm
Eaves drip for modular metal roofing tile 200cm
Wind brace (top/upper) 200 cm
Wind brace (one-piece) 200 cm
Drainage flashing for upper wind brace 200 cm
Wind brace extension 200 cm
Valley gutter 330mm/200cm

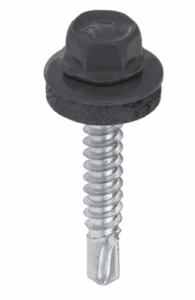

Self-drilling screw
